Curve Tracer Example 2

Click here to go to our main microwave measurements page

Click here to go to our main curve tracer page

Click here to go to our page on double-balanced mixers

Click here to learn about Walter Schottky

Thanks to Daniel T. for correcting some minor errors on this page (we previously said "460 mV" when we meant to say "260 mV"!)

Suppose you want to reverse engineer an old Watkins Johnson double balanced mixer, perhaps a WJM4A. You might want to know the forward voltage of the diodes that are inside. You can almost always access the diode characteristics through the IF port of a double-balanced mixer, without cutting off the lid. The forward voltage for a Schottky diode is defined as the voltage at which the device draws 1 ma Low forward voltage diodes (less than 0.3 volts) are referred to as low barrier diodes, diodes with VF between 300 mV and 450 mV are medium barrier, and diodes with VF greater than 450 mV are called high barrier diodes. There is no better way to measure the forward voltage of a Schottky diode than using a curve tracer.

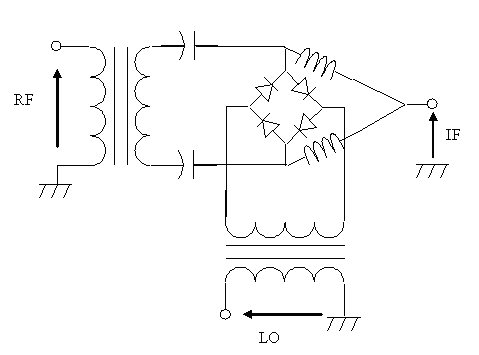

Before we continue, when you measure the diode characteristics of a quad diode through the IF port of a mixer, chances are you are looking at two diodes in parallel. So you must measure VF at 2 ma, not 1 ma. Here's a typical double-balanced mixer schematic, so you can see what we mean. OOPS, we forgot to show that there is actually a DC ground in the center of the LO balun, which is needed for this measurement! (we'll fix the figure one of these days...)

By the way, a great source for Schottky ring diodes is... (insert your company's name here for $50/month!).

In this example we will assume you own a Tektronix 370B curve tracer, the best there is. However, the procedure can be adapted to any model curve tracer if you will put on your thinking cap for a few minutes. Always start by disabling the output of the curve tracer to your DUT, and setting the collector voltage to zero (it's a big knob, you can't miss it). Turn the collector supply knob all the way counterclockwise to set it to zero.

Connect the mixer IF port to the curve tracer (we'll abbreviate it CT) this way:

Center of IF output coax=collector of CT
No connection=base of CT
Mixer package ground=emitter of CT

Cycle the 370B on/off to clear out whatever settings that last person used. Although the 370B defaults to very benign conditions, you should make a habit out of checking a few things we will describe here; if you have an older CT, you will need to manually set more of the control knobs. You should check to see that the polarity of the collector supply is positive (set to NPN on old curve tracers) and it is in swept mode as opposed to DC or AC modes. You won't be using the step generator, so you don't have to even look at any of its controls. The polarity of the collector supply doesn't matter for this measurement, you will be looking a diode IV curve in either polarity.

Now set the knobs on the CT this way (order is not important, but there are five knobs you need to adjust):

    1. Set vertical/division to 200 uA.
    2. Set horizontal/division to 50 mV (the lowest setting).
    3. Set collector supply to "emitter open".
    4. Set peak power to to the lowest setting, .08 W (should be there already).
    5. Set maximum collector voltage to 16 volts (the lowest setting, it should be there already).

Now you are ready to begin the measurement.

    1. Enable the outputs that are connected to your DUT (you could be plugged in to either the left side or the right side of the CT).

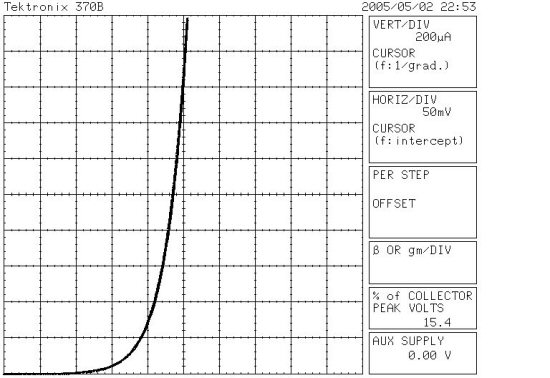

    2. Increase the "collector supply" until you see the VF curve. Stop when you reach the top of the scale (two milliamps). Your display should look like this:

The forward voltage is 260 mV in the above curve (voltage at 2 ma, at the top of the graph).

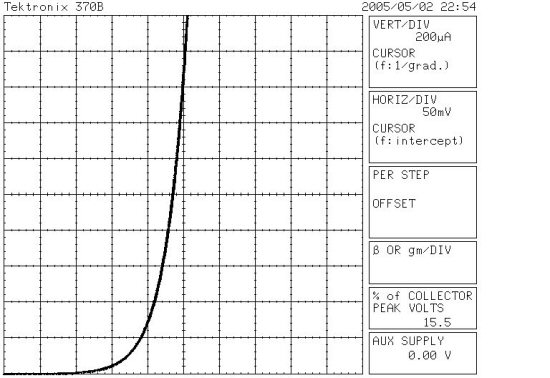

You can reverse the leads and measure the other two diodes in the quad to compare how balanced they are to the first pair. We measured almost exactly 260 mV also, they are nicely matched.

An optional way to look at them together is to set the polarity to "AC" which sets the origin to the middle of the display. Now when you crank up the voltage you can see both diodes. Here we change the current per division to 500 uA so we could measure both VFs at 2 ma Again, we read 260 mV for both diodes (here you need to look four divisions from the center line to read 2 ma).

If this still isn't clear, please send us your questions!
