Fundamentals of EM Waves

This web page is part of a three-part tutorial on radar absorbing materials used for RCS reduction.
Click here to go to our main page on absorbing materials.

Part one is on the fundamentals of electromagnetic waves (you are here!)

Part two is on radar cross-section physics.

Part three is on radar absorbers and absorption mechanisms.

Some definitions:

Chemical agent resistive coating.

When you get far enough from an antenna so that its radiated field wave can be considered planar. Also called the Fraunhoffer Region. See rule of thumb below.

Horizontal polarization.

Magnetic radar absorbing material, made of a synthetic rubber material loaded with iron particles.

When you are close enough to an antenna so that its radiated field must be considered mathematically spherical rather than planar. Also called the Fresnel Region. See rule of thumb below.

Perfect electrical conductor.

Perfect magnetic conductor.

Poynting vector
The cross-product of the E-field and H-field, it "points" in the direction that energy is moving. Units are power/area (W/m2).

radar cross-section (RCS)
The area of a perfect "mirror" that would give the same radar return as a complex object in the far field.

Radar absorbing structures.

Radar cross-section.

Resistive cards.

The object that you are trying to reduce the radar cross-section of.

Specular reflection
Mirror-like reflection, the worst kind when you are trying to reduce RCS. Similar to when an SUV behind your car nails your rearview mirror with its headlights while you are driving at night.

Transverse electric.

Transverse magnetic.

Vertical polarization.

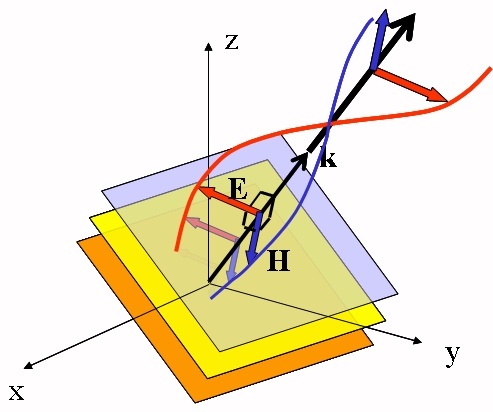

Fundamentals of EM waves

Electromagnetic (EM) waves are created by time-varying currents and charges. Their interactions with materials obey the boundary conditions of Maxwell's equations. EM waves can be guided by structures (transmission lines) or by free space. An antenna is a material structure that directs EM fields from a source into space, or, by reciprocity, from space to a receiver. The shape and size of the antenna controls the transition from the near field to the far field.

Fundamentals of EM Waves

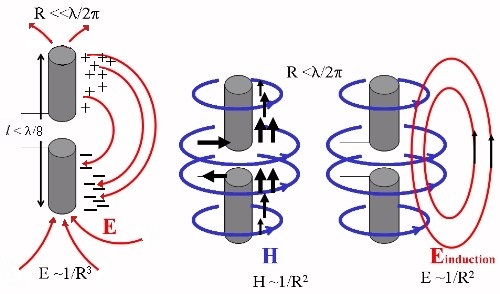

Near-field behavior is most clearly seen surrounding small antennas; the electric dipole is a capacitive object:

ARC 2a

The near field consists of the reactive near field, also known as the quasi-static near field, and the radiating near field also known as the Fresnel zone or Fresnel region. In the quasi-static near field we see fields that strongly resemble the electrostatic fields of a charge dipole for a dipole antenna and the fields of a magnetic dipole for a loop antenna. In large antennas the quasi-static field can be seen near edges.

In the Fresnel zone the waves are clearly not plane and may have phase shifts that do not vary linearly with distance from a (fictitious) phase center.

From the near field to the far field, EM radiation changes from spherical waves to plane waves. The far-field is sometimes called the Fraunhofer region.  Note that in the graphic below, we accidentally misspelled Fraunhofer.  Don't worry, it's on our list of things to fix soon!


Fundamentals of EM Waves

Fundamentals of EM WavesMicrowaves101 Rule of Thumb

You are in the far-field if your distance from the source is greater than 2d2/Fundamentals of EM Waves.

The small loop is the magnetic dipole, an inductive object.

Fundamentals of EM Waves

Common to all electrically small (less than a wavelength) antennas is that the near field excites the environment in which the antenna resides. It's the antenna combined with its environment that radiates EM waves. Electrically small antennas include:

Fundamentals of EM Waves

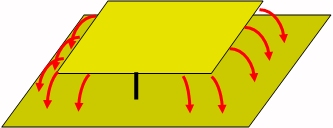

microstrip patch

Fundamentals of EM Waves

cell phone

Fundamentals of EM Waves

folded patch


Before tackling the near field, it's best to understand the behavior of the far field. Far from the source, the spherical EM waves flatten out and can be treated like plane waves. The power density is given by:

Ptransmitted/Area spread out = W/m2

In the far field, E-field and H-field are proportional to 1/radius. The Poynting vector (power/area) is given by E x H. Therefore, power density drops as 1/radius2.

Fundamentals of EM Waves

Electrically large antennas are good sources of plane waves in the laboratory. A large antenna focuses the power, this is called directivity, or directive gain. Here are some large antenna examples:

Fundamentals of EM Waves

Cassegrain antenna

Fundamentals of EM Waves

Slotted antenna

Fundamentals of EM Waves

Waveguide horn

The antenna creates a large (D>>Fundamentals of EM Waves) area of electromagnetic field, with nearly uniform phase.

The paragraph below was updated February 16, 2009 for clarity:

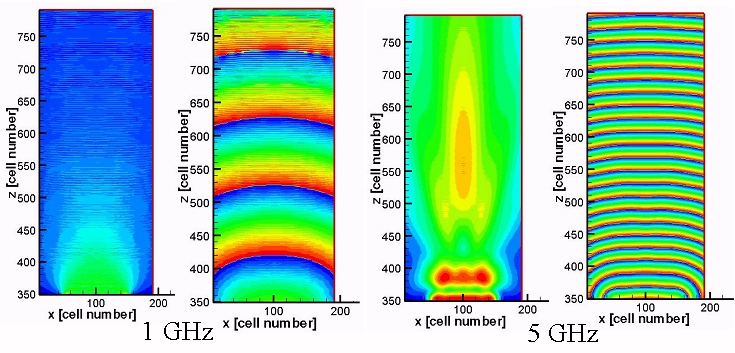

Below are two pairs of field pattern plots of a 1 x 1 foot aperture, at one GHz and then at five GHz, representing an "electrically small" aperture and an "electrically large" aperture. The left plots are amplitude while the right plots show phase. Note that the 5 GHz signal becomes "far-field" in a shorter distance than the 1 GHz signal (that is, the phase lines become flatter). The large aperture (5 GHz) quickly allows plane wave fronts to form, but there is interference inside the Fresnel zone (the peaks and valleys you see in the amplitude). The small aperture (1 GHz) generates a wave much like a small point radiator, so the wave is spherical near the aperture (there is no clear transition to a Fraunhoffer region).

Fundamentals of EM Waves

Footnote: the computation that generated the figures beyond the 1x1 foot aperture is credited to PhD student Zhichao Zhang of ASU.

Much of the technical material on this page was prepared by Dr. Rudy Diaz of Arizona State University, for ARC Technologies, Inc.
