New for April 2008! Mesa resistors are used in MMIC designs, and typically to provide high-value resistance but with low accuracy (tolerance +/-20%) limited power handling and high temperature coefficient of resistance. This fits the bill for an RF choke, which is often used in controlling the gate electrode a switch FET. The gate electrode is what sets the state of the device (ON, OFF, or NOT QUITE EITHER!)

Mesa Resistors

Photo courtesy of Red Mesa School District, Teec Nos Pos, Arizona

A mesa is an area on a semiconductor wafer where the semiconductor has not been etched away. In nature a mesa is a flat-topped mountain; on a semiconductor a mesa also rises above the surrounding semi-insulating substrate, but the height is typically less than one micron. A smaller scale for sure! It is possible to create a resistor using ion-implant techniques that are purely planar to the substrate, these "implanted resistors" have the same properties as mesa resistors and so we'll lump them in to the same category.

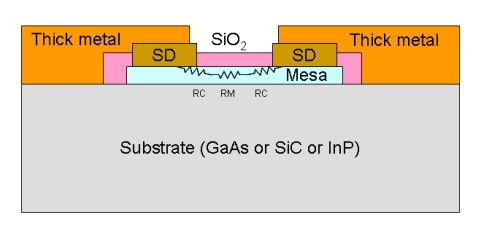

Contacts to mesa resistors are established using source-drain (SD) metal (also called Ohmic metal) which is alloyed at high temperature to provide a low resistance, non-Schottky contact. A passivation layer is always added to protect the resistor (SiO2 shown pretty in pink) and has to be opened up to allow contact between the thick metal used for transmission lines and the SD metal which should be avoided for T-lines because it is lossy. Looking at the cross section below, the total resistor value has three series components which we have denoted RC, RM and RC. The mesa itself (RM) has a value that is calculated from its sheet resistance and number of squares chosen by the designer (length/width). Typical values for sheet resistance are 100-500 ohms/square depending on what/who's process you are using, which is usually much higher than you can get with thin-film metal resistors. The RF sheet resistance is essentially the same as the DC resistance, because the thickness of mesa resistors is typically much smaller than a skin depth.

Mesa Resistors

Contact resistance

The contact resistance "RC" shown in the cross section is usually given in Ohm-microns, and you calculate its value by dividing by the width of the contact, not the area. In this case the only dimension you have to consider is the width of the contact region, not the entire contact surface. What's up with that?

When you think about it this makes a lot of sense. In such a horizontal structure, the DC current prefers to run within the path of lowest resistance, and in the RF case, the waveform actually penetrates the mesa and gets up into the metal as well. The current stays within the source-drain contact, until the very edge of the mesa resistor, where the SD contact stops. At that point the current has to move entirely into the mesa, and here's where the contact resistance must be considered. Typical values for contact resistance are are 100 to 300 ohm-micron, so a ten micron wide contact would have ten to thirty ohms contact resistance. If you ignore this, it might not be such a big deal, especially if you are designing an RF choke resistor of 1000 or more ohms. Don't ignore contact resistance in the case of a feedback resistor.

Contact resistance is typically measured or calculated for direct current only, but it is valid enough if you happen to use a mesa resistor in an RF path; an example of this might be in a parallel feedback path on an amplifier stage.

Power handling

There's a problem with mesa resistors that you need to consider if you want to pass any appreciable amount to current through them. These are semiconductor resisters, and they have a nonlinear response.

The parameter that is often associated with the nonlinear behavior is the critical filed voltage (Vcrit) expressed in volts/micron. However, it is far easier for a circuit designer to think in terms of the saturation current per unit width:

Isat=Vcrit/Rsh

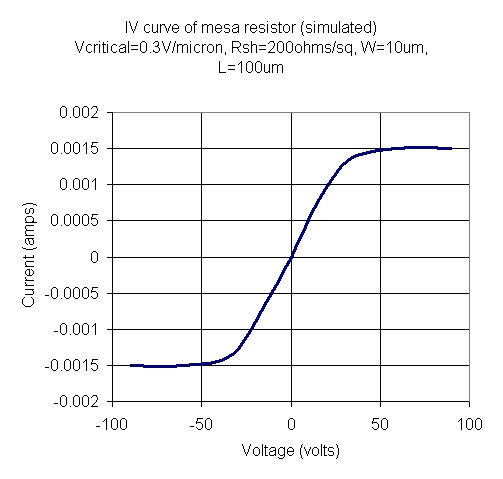

where Rsh is the sheet resistance for the process. The plot below illustrates this, although it is just a sketch of the problem we made using Excel, not real data. Here the sheet resistance is 200 ohms/square and Vcrit is 0.3 volts/micron. Therefore any resistor of 10 um width will saturate at 1.5 mA. The example resistor is 10 um wide by 100 um long, which should be good to about 30 volts.

Mesa Resistors

Why does this happen? To answer this question, we could make up something about "impact ionization of donor sites" or some such baloney. Engineers don't always care why something happens, they just need to avoid the pitfalls that may come up.

If anyone has a real IV curve to illustrate this for us, we'd appreciate it!

Temperature coefficient

Mesa resistors have very poor temperature coefficients, at around -0.1%/degree C. Over a 100 degree C range, your resistor will vary 10%!
