How to size isolation resistors in SSPAs

Click here to go to our main page on graceful degradation

Click here to learn about SSPAs

Often when designing power combined amplifiers, not enough thought goes into choosing isolation resistors such that they are sized correctly for graceful degradation. Ordinarily, there is very little dissipation in the isolation resistors, unless you have some serious phase mismatch going on between the MMICs you stuffed in there. The real problem is ensuring that the amplifier limps along after one MMIC fails; if you don't design the combiner network correctly, one amplifier failure can blow a resistor which could lead to another amplifier failure and so on.  On this page we aim to clear up some of the mystery, and show you how to do this yourself using EDA software and harmonic balance. The examples below are not meant to replace hard work of actually analyzing a circuit, indeed, you may get completely different answers if you used coupled line couplers to create a balanced amplifier (Langes), and the interconnect lengths (which are zero below) will have some effects. Also, you might want to consider large signal models, for reasons that will become apparent.

Two-way example

Let's start with a simple, two-way power combined amplifier, shown below, using ideal Wilkinson power dividers.  It uses linear amplifier elements, but it will suffice for the topic at hand. The amplifiers provide 13.01 dB gain and 10 watts output power, such that a 1 watt (30 dBm) input signal is amplified to a 20 watt output. In order to access harmonic balance stuff, you need to change the input port to a source (right click it in MWO to reveal properties).

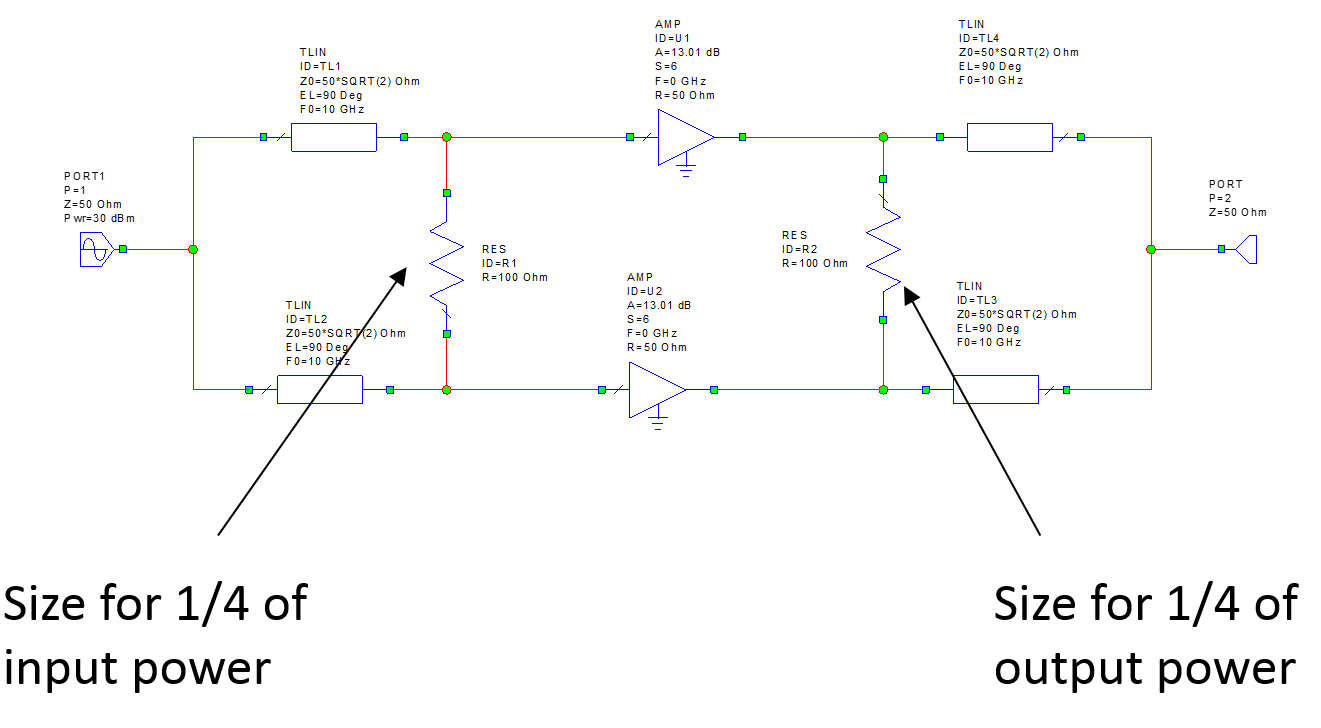

Two way amp

 Below, harmonic balance is used to plot the output power and the dissipated power in the two resistors.  The notation "PT" means total power, so it includes non-existent harmonics which is not a problem.  The frequency fall off is due to the reflection of power from the Wilkinson on the input, it is only fully impedance matched at 10 GHz.

Two way power

Two-way single failure

Now, let's see what happens when one of the amplifiers dies.  In this case it acts like an open circuit, but we could have just as well shorted it out.

Two way amp one fail

Output power drops to 1/4 of the full power (dropping to our rule of thumb #91 square-of-the-fraction-of-remaining-amplifiers output power). What is going on at 0 GHz and 20 GHz, the degraded SSPA appears to put out the full 20 watts from one "ten watt" amplifier?  That's fake news, due to the use of an ideal amplifier that has 13 dB gain across all frequencies (and no limit in output power, the model is linear!)

Two way power one fail

Two-way summary

In summary, here is the worst-case power dissipation of the resistors.  When you are sizing them, be sure to consider if you are designing for a pulsed application (which reduces thermal dissipation) and then you need to derate them per company or customer guidelines (typically 50%).  You are not done yet, you need to perform a thermal analysis to see if you are in the safe operating limits; depending on the temperature you might have to derate them even more. Consider the new CVD diamond resistors that are available to get you out of thermal nightmares!

Two way amp resistors

 thumb It's time for a Microwaves101 Rule of Thumb!

Rule of thumb #127: When power-combining two amplifiers using Wilkinsons in order to ensure graceful degradation, the isolation resistor in the input divider needs to be sized to be able to withstand 1/4 of the average input power.  The isolation resistor in the output combiner needs to be sized to withstand 1/4 of the average output power (or one half of the average power of a constituent power amplifier. This rule can be extended to corporate combiners by considering each Wilkinson separately, as we will show below.

Four-way example

Below is a four-way amplifier, made by cascading Wilkinsons.  We increased the input power to 16 dBm in order to maintain the illusion of combining 10 watt amplifiers to get 40 watts.

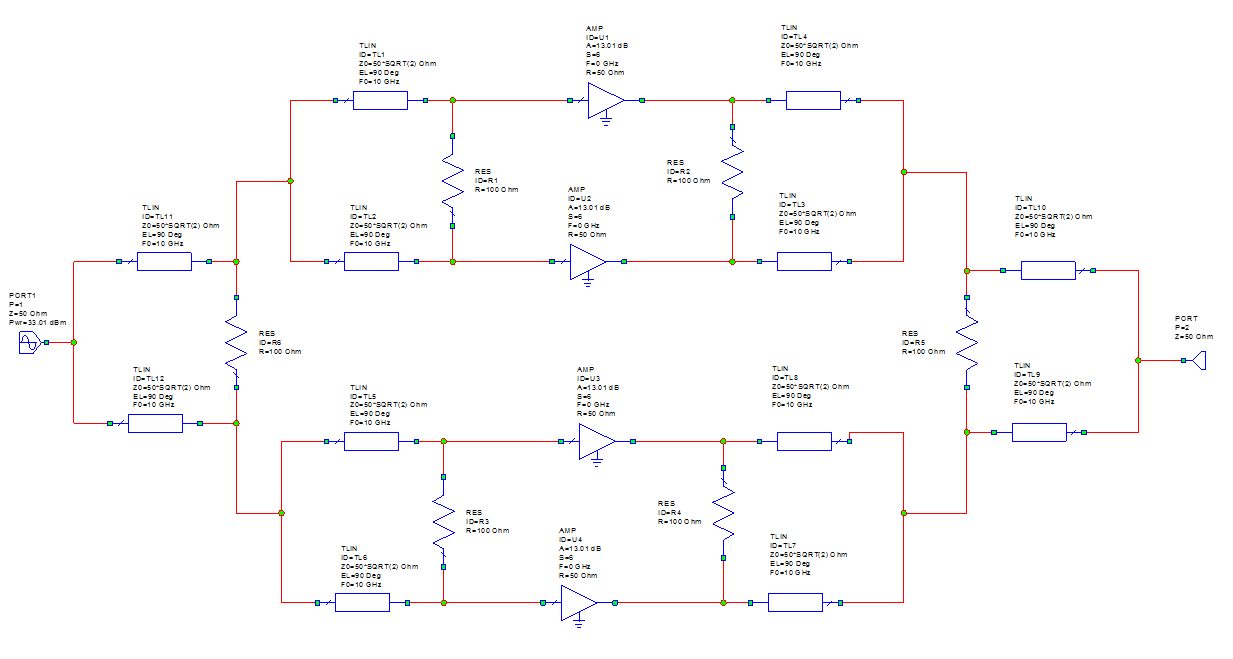

Four way amp

Four way output power

 Four-way, one failure

Let's look at a single amplifier failure:

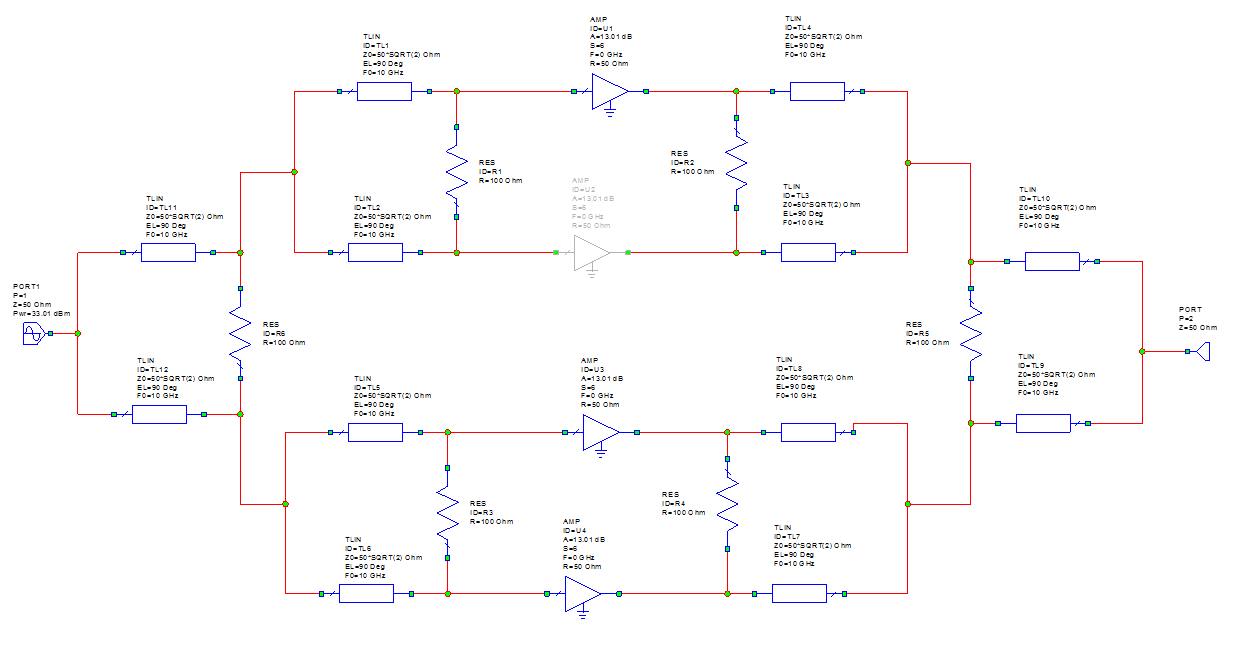

Four way amp one fail

To analyze the resistors in this amp, we split them onto to plots.  Below is the dissipation in the input resistors R6, R1 and R3. The full scale of the plot is the input power, so you can see that R6 is dissipating 1/16 of that power and R1 is getting hit with 1/8 of the power.

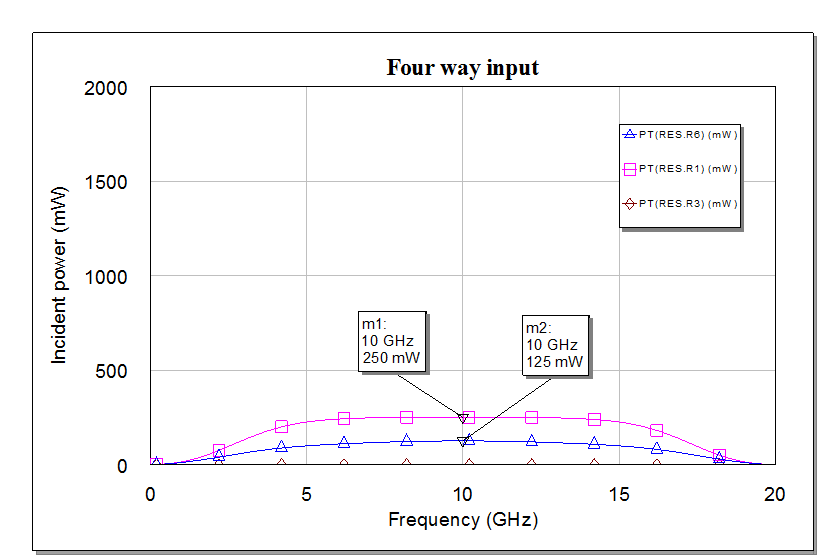

Four way input power one fail

Output (five watts), and R5 gets 1/16.  Five watts is a serious amount of power for a resistor that needs to act like a lumped element at 10 GHz!  Studying the input and output plots you will understand that input resistors can always be smaller than output resistors.

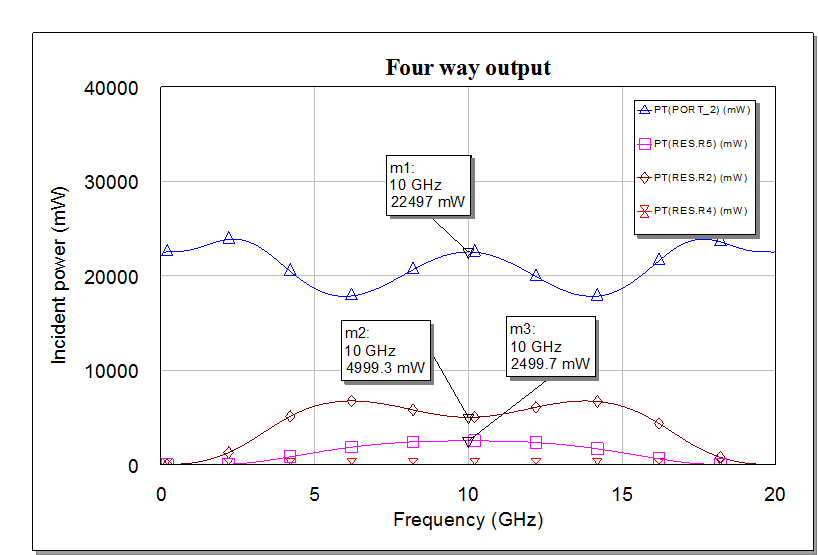

Four way output power one fail

Four-way, neighbor failure

Next up, two amplifiers, side-by-side, fail.  This has a stressful effect on the first divider/last combiner isolation resistors.

Four way amp neighbor fail

 On the input, R6 is getting blasted with 1/4 of the input power. No other resistor dissipation occurs.

Four way input power neighbor fail

On the output, R5 is taking some real heat and 1/4 of 40 watts, or ten watts. Indeed, that resistor dissipates as much power as the remaining amplifier puts out!

Four way output power neighbor fail

Four-way, non-neighbor failure

Now let's look at non-neighbor failure.  This is a much less stressful problem.

Four way amp non neighbor fail

 On the input, R1 and R3 are each hit with 1/8 of the input power (the lines are on top of each other).  R6 has zero dissipation.

Four way input power non neighbor fail

 On the output a similar condition exists, R2 and R4 dissipate 1/8 of the original output power.

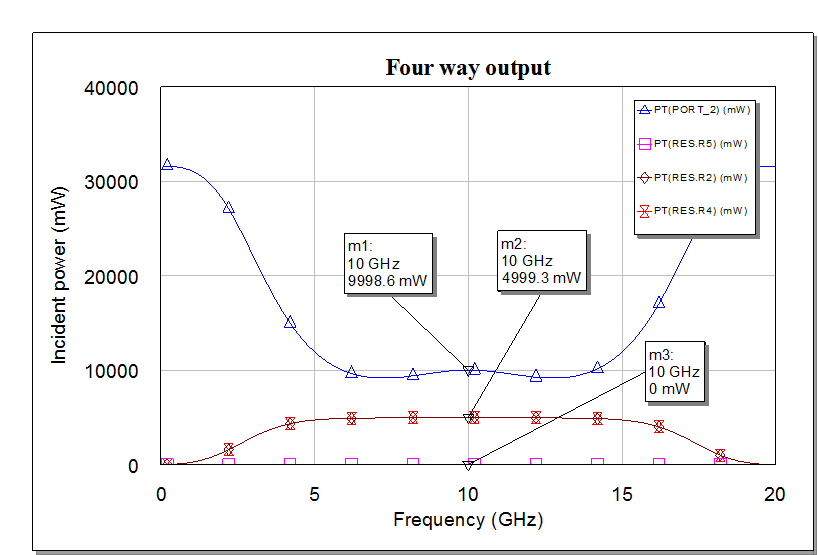

Four way output power non neighbor fail

Four-way, special case

Up until this case, when we disabled an amplifier, we made it into an open circuit. What if an amplifier failed and acted like a short circuit?  Worse yet, what if its neighbor failed in an open-circuit fashion?

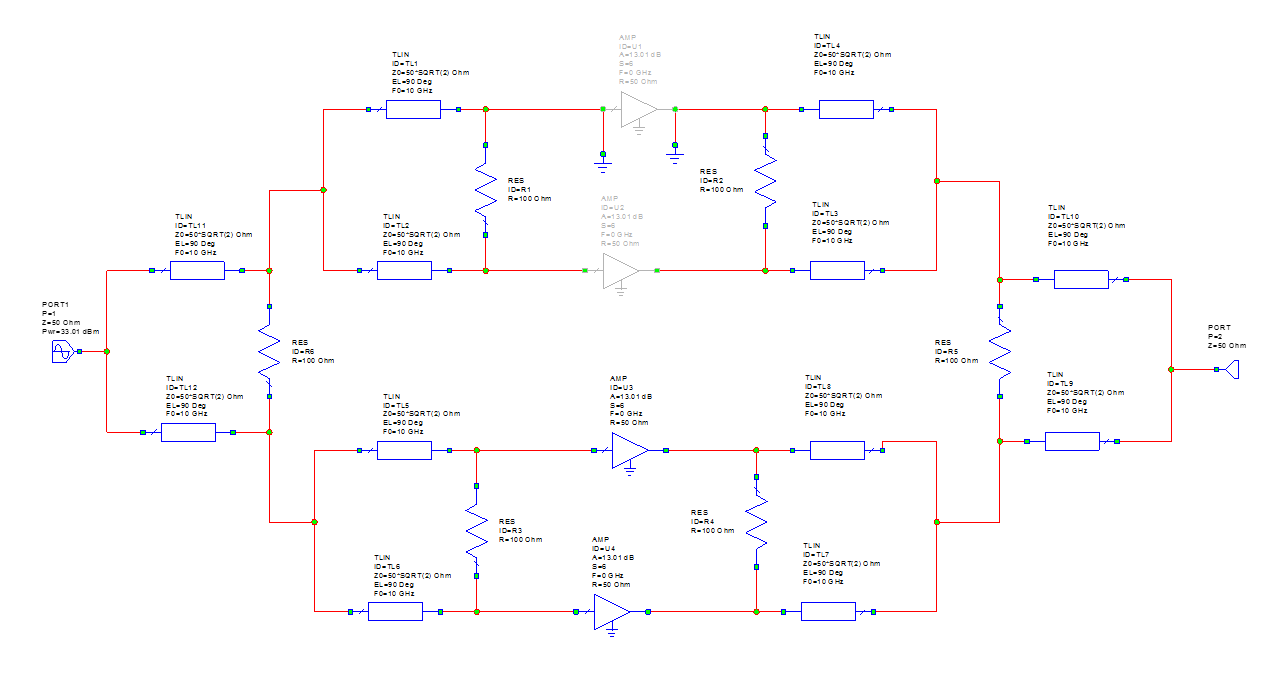

Four way amp special case

This special case creates a big problem for resistor R1. It has accidentally become a matched load, and is eating half of the driver input power. If you don't size it for 1 watt, it may blow up.  But what if it did blow up?  It would likely not cause any harm to the remaining two MMIC power amps. You can debate this scenario at your next design review, and let us know if you end up sizing the resstors to handle it.

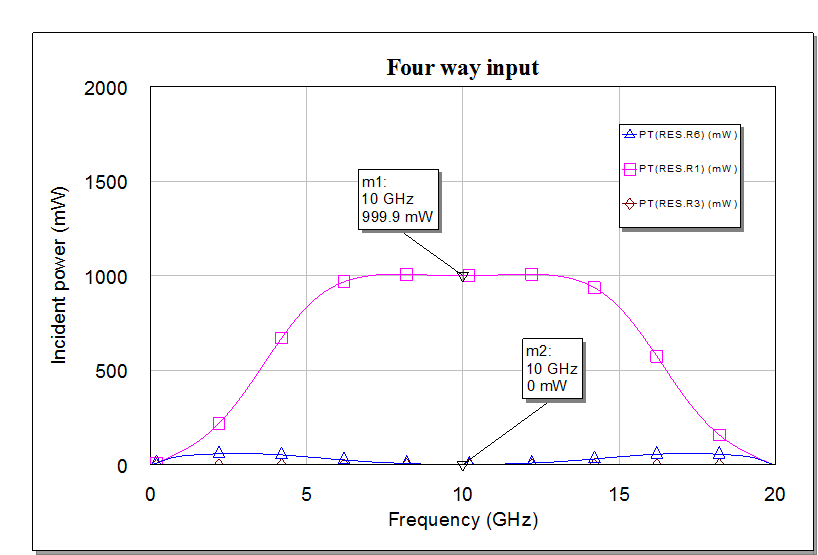

Four way input power special fail

On the output, R5 is getting 1/4 of the original output power, or 10 watts. this is no different than the case where two neighbor amplifiers fail in the same manner (both short, or both open).

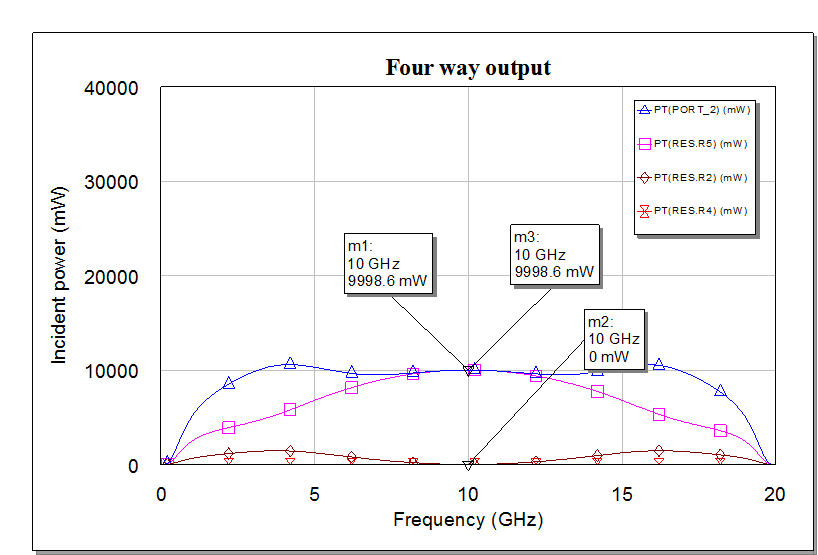

Four way output power special fail

Four-way summary

To summarize our analysis for resistors in a four-way amp, see the chart below.  We chose to ignore that special case...

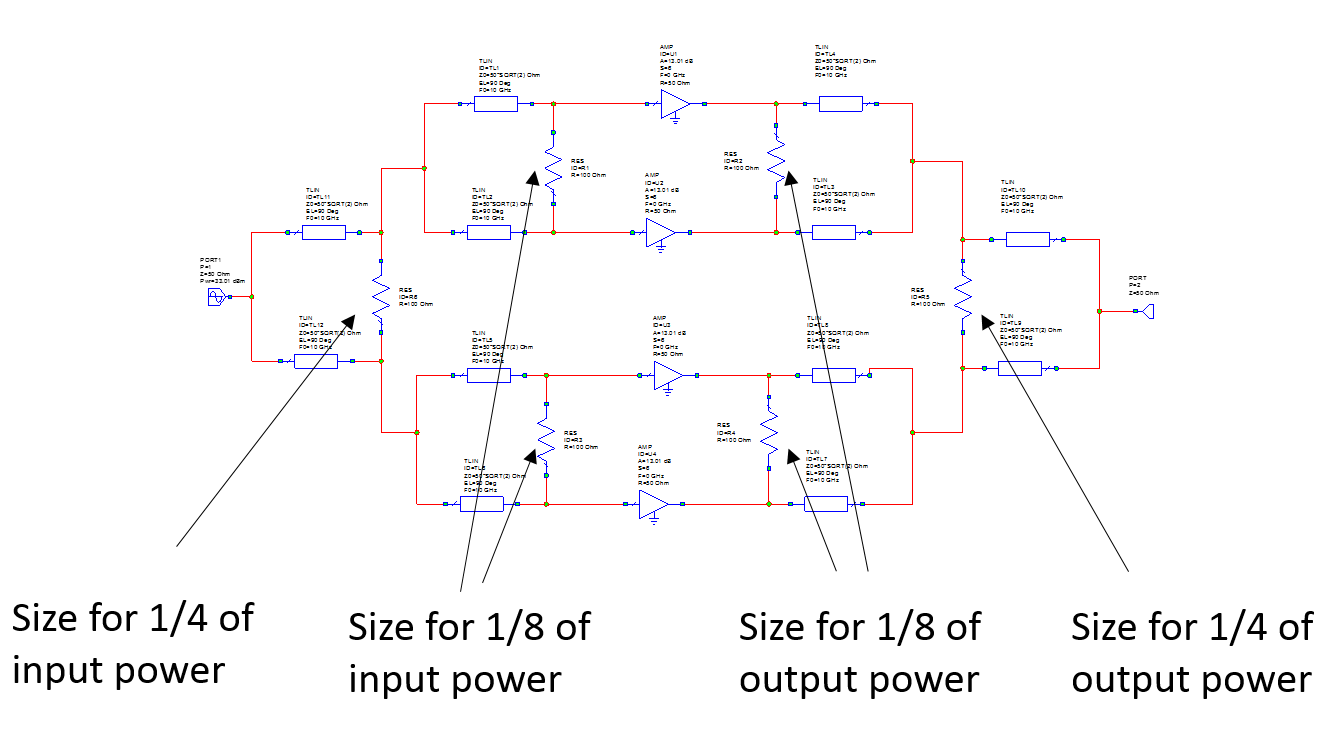

Four way amp resistors
