Doherty amplifier history

How'd you like to have an amplifier named after you? William Doherty did just that when he invented a special amplifier in the 1930s, and published "A New High Efficiency Power Amplifier for Modulated Waves", reference [1] at the bottom of his page.  That's why he's in our Microwave Hall of Fame! You can download the Doherty amplifier patent (from 1940) at reference [2].

The Doherty amplifier originally was intended for radio transmitters. Below we can see that the life of the radio engineer in the 1930s wasn't as easy as it is today. If someone can tell us why the tubes are blowing out when the music gets loud, we'd love to know!

The International Silver String Submarine Band

How the Doherty amplifer works

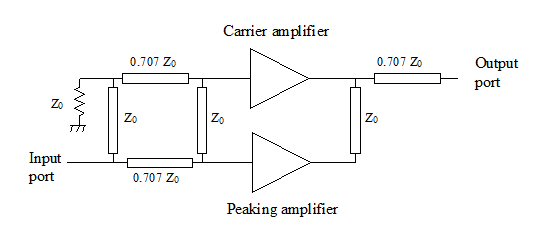

The Doherty amplifier offers improved efficiency compared to balanced amplifiers, when output power is backed off from saturation. Doherty amplifiers are typically used in communications (radios, not radars). The heart of the Doherty amplifier is the Doherty combiner, shown below. Update July 2020: the schematic below was updated yet again.  It is now exactly like the image in the 2015 Microwaves Magazine article by Ray Pengelly, reference [3] at bottom of this page.

Doherty schematic

Block diagram of a simple Doherty amplifier

And here is another image  someone sent us of a Doherty amp, which provides an addituionall degree of freedom (theta and phi don't necessarily need to be 0 and 90 degrees).

The Doherty amplifier power-combines two (and recently, more) amplifiers, one is called the "carrier" amplifier while the second is called the "peaking" amplifier. In many Doherty amplifiers (more alternatives will be discussed further down), the two amplifiers are biased differently, the carrier amp is at a normal Class AB (provides gain at any power level) or Class B, while the peaking amplifier is at Class C which only conducts at half of the cycle. The beauty of the Doherty amplifier is improved power-added efficiency, compared to a balanced amplifier, at backed off power levels. If you will always operate at saturated power (like in many radars) you have no business using the Doherty.

The Doherty amplifier pair works as follows: on the input the signal is split using a quadrature coupler (not necessarily an equal split), such as a Lange or branchline hybrid (branchline is shown in our schematic). The input behaves the same as a balanced amplifier, and has the same feature where mismatched amplifiers will have their reflection coefficients reduced if the reflection coefficients are equal in amplitude and phase, the reflected waves end up in the load terminating the isolated port of the coupler.

The output of the Doherty pair is where life gets interesting. The two signals are out of phase by 90 degrees, but by the addition of a quarter-wave transmission line of the peaking amplifier, they are brought back into phase and reactively combined. At this point the two signals in parallel create a Z0/2 impedance. This is stepped up to Z0 by a quarter-wave transformer. In a fifty ohm system the transformer would be 35.35 ohms. However, the amplifiers are operating nonlinearly, so the output combiner is more complicated.  During operation, the response of one amplifier actively load-pulls the other, as they are not isolated like they would be in a Wilkinson power divider, for example. To design a Doherty amplifier, you are going to need to perform nonlinear analyses.

When we say that the carrier amplifier "turns on first", we are referring to the overall input/output power curve.  The peaking amplifier kicks in as the carrier amplifier starts to compress. Yes, we still need a graphic for that....

There are several ways to make the two amplifiers behave differently. As previously mentioned, you can set them in different bias classes.  You could operate them in the same class, but use an adaptive biasing scheme to turn on the peaking amplifier when it is needed.  You could use unequal-sized devices. Or you could use an unequal-split power divider on the input.

Doherty example

Here is BLF888E RF power transistor pair assembled onto a Doherty eval board realized in microstrip on a Rogers' soft board material.  The image and transistors are available from Ampleon.  This is a real work of art, why do you think RF circuit boards are called artwork? In this case, the transistors are the same size and biased at the same point.  The Doherty action is due to the unequal power divider on the input.  It is realized with a Wilkinson divider, where one output is followed by a squiggly high impedance, quarter-wavelength impedance transformer. The ratio of power (you can find this on the web) is 1:1.5.  On the output, the fat lines are impedance transformers to match to the transistors' low impedance outputs. The upper path has an additional quarter-wave length to put the transistors back in phase. The carrier amplifier is on top and the peaking amplifier is on the bottom; the peaking amplifier has lower input power due to the high-impedance line in front of it.  That amplifier pair is capable of 750 watts peak!

BLF888E

Ampleon UHF Doherty amplifier

If anyone has test data on a Doherty amplifier that they can donate to this page, particularly the efficiency improvement at back-off, just shoot an email to anyone at microwaves101.com. Even worldsmostannoyingperson@microwaves101.com should work!

 References

There are literally hundreds of references published on Doherty amplifiers.  Here are some good ones:

[1] W. H. Doherty, “A New High Efficiency Power Amplifier for Modulated Waves,” Proceedings of the IRE, Vol. 24, pp. 1163 – 1182, 1936.

[2] US Patent...

[3] R. Pengelly, C. Fager and M. Ozen, "Doherty's Legacy: A History of the Doherty Power Amplifier from 1936 to the Present Day," in IEEE Microwave Magazine, vol. 17, no. 2, pp. 41-58, Feb. 2016.

[4] A. Z. Markos, P. Colantonio, F. Giannini, R. Giofrè, M. Imbimbo, G. Kompa, "A 6W Uneven Doherty Power Amplifier in GaN Technology", Proceedings of the 2nd European Microwave Integrated Circuits Conference, October 2007, Munich, Germany.

[5] Just find Gayle Collins. She knows Doherty amplifiers...
