Single-box branchline couplers

The branchline the simplest type of quadrature coupler, since the circuitry is entirely planar. A ideal single-box branchline coupler is shown below. Each transmission line is a quarter wavelength. However, 3/4, 5/4 or 7/4 wavelengths (etc.) could also be used on each arm if the circuit layout requires it, the penalty is paid in decreasing bandwidth. A signal entering the top left port (port 1 in the figure) is split into two quadrature signals on the right (ports 2 and 3), with the remaining port 4 fully isolated from the input port at the center frequency. Remember that the lower output port (port 3) has the most negative transmission phase since it has the farthest path to travel. By the way, that "<" symbol in our cheesy schematics is supposed to represent "angle", as in "∠".  We can always recognize when people have ripped off this schematic for presentations by this quirk!

Branchline Couplers

Ideal branchline coupler



The next figure shows the response of an ideal branchline coupler where the each side is a quarter wavelength at 10,000 MHz (10 GHz). The first graph shows the losses from the input to the two output arms. S21 is the transmission loss from the top port to the upper right port, S31 is from the input to the lower right port. Using the ideal transmission line impedances shown above provides a equal 3 dB split at the center frequency. The markers have been aligned to show the 1-dB bandwidth of the coupler, which is 2580 MHz or 25.8%.

Branchline Couplers

Power split of ideal branchline coupler

Here's an interesting historcal perspective... the plot shown above was made in "Eagleware" software, which originally cost $99 thirty years ago (as "SuperStar") and was great.  There was no license, the software was good so long as you could keep a DOS operating system alive and had a place to plug in the dongle.  The company that made it was originally called Circuit Busters. In 2005, Eagleward sold out to Hewlett Packard.   Soon Hewlett Packard offered free upgrades for the original software product.  The Unknown Editor fell for this bait, upgraded, and twelve months later the upgraded software expired.  At this point HP would support it, if you kicked in a yearly maintenance fee.  We never renewed it. It pays to read the fine print! At least some SuperStar plots can live on in perpetuity, on this page and other early Microwaves101 pages! One further revelation: Keysight still keeps the Eagleware product line alive, as the biblical play on words, "Genesys".

The second graph shows that the bandwidth where the device has better than 14 dB return loss (1.5:1 VSWR) is 2080 MHz, or 20.8%. The isolation (power coupled to the terminated port) is also plotted here and is very nearly equal to the return loss.

Branchline Couplers

Return loss (blue) and isolation (red) of ideal branchline coupler

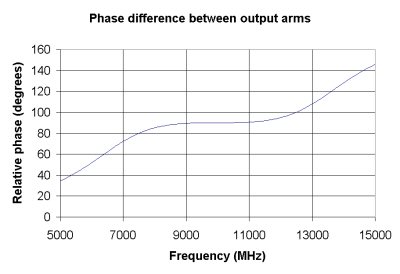

The next plot shows the phase difference between the two outputs (ideally 90 degrees, remember?) For +/-10 degrees the bandwidth is about 4300 MHz, or 43%.

Branchline Couplers

Phase response of ideal branchline coupler



Double-box branchline coupler

New for February 2006: we've added a separate page on the double-box coupler, which explores this topic further!

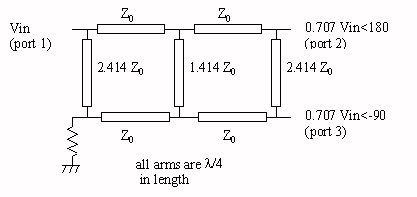

As with the Wilkinson power splitter, the bandwidth of a branchline coupler can be improved by adding sections. The next figure shows a "double-box" branchline coupler with its ideal impedances. We've never seen this in a text book, have you? Microwaves101 rules!

In a 50-ohm system, the line impedances of the end vertical segments work out to be 120.71 ohms, and the center vertical segment 70.71 ohms. In practice, it may be hard to accurately achieve the 120.71 ohm impedance lines accurately.

Update September 2017: the lower right port should show +90 degrees, not -90 degrees.  Thanks to Chih-Jung!  If you think about it, the path goes through three -90 degree legs, or -270 degrees, which is +90 in microwave-land.  One of these days we will fix it.

Branchline Couplers

Ideal double-box branchline coupler



The next three figures show the frequency response of the ideal double-box branchline coupler, centered at 10,000 MHz (10 GHz). In this case, the 1-dB response of the coupled arm is 35%, the 14 dB return loss band (1.5:1 VSWR) is 41%, and the +/-10 degrees phase difference is 50%. However, the tradeoff for the extra bandwidth in real life will be added loss of the second box section, not to mention the added size.

Branchline Couplers

Power split of ideal double-box branchline coupler



Branchline Couplers

Return loss (blue) and isolation (red) of ideal double-box
branchline coupler



Branchline Couplers

Phase response of ideal double-box branchline coupler

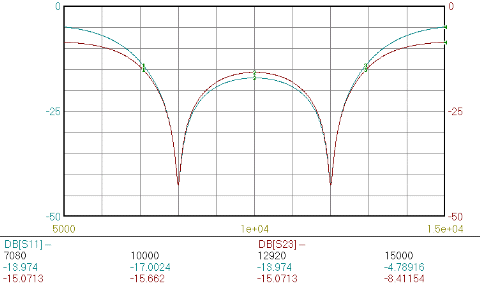

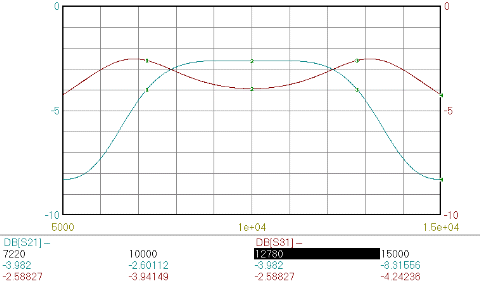

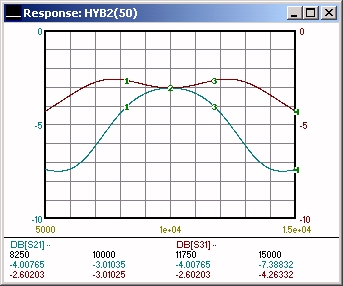

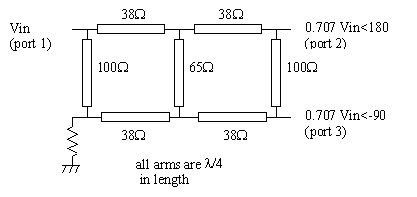

As a final illustration of improving the bandwidth of the branchline coupler, a double-box structure was tuned to increase the frequency bands for 1-dB coupling and 14 dB return loss. Note that the equal 3 dB power split at the center frequency must be somewhat corrupted as a tradeoff. The arm impedances of this coupler are now 38 ohms for the series arms and 100 ohms and 65 ohms as shown for the three shunt arms, as shown below. The figures speak to the results. The 1-dB band is now 55.6%, while the 14 dB return loss band is 58.4%.



Branchline Couplers



Double-box hybrid coupler tuned for more bandwidth



Branchline Couplers

Power split of tuned double-box hybrid coupler



Branchline Couplers

Return loss (blue) and isolation (red) of tuned
double-box branchline coupler



Lumped element branchline coupler

New for March 2007: here's a page on lumped element Wilkinsons!

Lumped elements can be used to approximate transmission lines in a branchline coupler. The structure for a quarter wave transmission line can be realized with a pair of shunt capacitors of equal value, separated by a series inductor (a "pi" network). By optimizing the inductor and capacitor values, different line impedances can be "faked". Why would you want to use shunt elements? So you make branchline couplers at lower microwave frequencies (UHF through S-band) and not have to deal with huge transmission line lengths.

Below we present a lumped-element quadrature coupler which was optimized to work at 100 MHz. The lumped elements are ideal; if this was a real design that we were getting paid for we would have included all of the parasitic elements into the capacitor and inductor models, which is necessary if you want a true prediction of how the circuit will perform on the bench. Note that if you want to scale the design to a different frequency, all you have to do is scale the element values with inversely with frequency (use half the values for a 200 MHz design).



Branchline Couplers

Schematic representation of 80 to 100 MHz lumped-element
quadrature coupler

Below are the power splits of port 2 and port 3. Note that we managed to get them within maybe 1.5 dB of each other at the center frequency. Maybe you could do better, Mr. Smart Guy.

Branchline Couplers

Below is the phase difference between the paths 1-2 and 1-3. Note that 90 degrees is achieved with less than 1 degree of error from 80 to 100 MHz. In real life it won't be as good because you will have to allow for tolerances on the parts.

Branchline Couplers

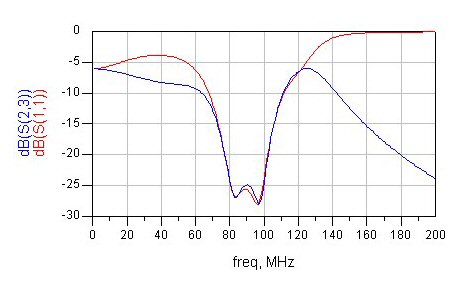

Finally, we show the port matching (S11) and the isolation (S23). Note they are similar, this is true of most quadrature coupler designs.

Branchline Couplers

Here's a branchline coupler in MMIC representation, with the quarter wavelength arms changed into lumped inductive and capacitive elements. It's a double-box structure on four-mil GaAs. It worked great at S-band, with less than 1 dB resistive loss in spite of all those spiral inductors! Such a structure can make an efficient power combiner for the IF output of a higher-frequency image-rejection mixer.

Branchline Couplers

Lumped-element branchline coupler (MMIC representation)



Unequal-split branchline couplers

By varying the impedances of the opposite arms in a branchline coupler, unequal power splits can be obtained, as shown in the figure below.

Branchline Couplers

Unequal branchline power splitter



The equations for the line impedances Z0A and Z0B are given below, as functions of the power split PA/PB and the system impedance Z0.

Branchline Couplers

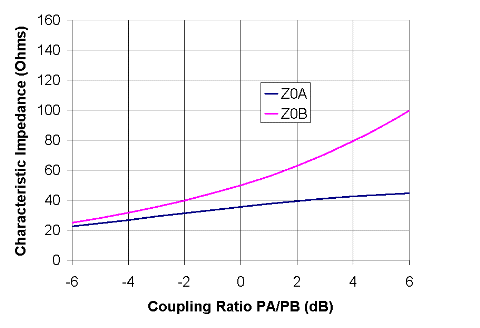

The plot below shows the characteristic impedances Z0A and Z0B, for a fifty ohm system, as a function of the coupling ratio PA/PB expressed in dB. Note that two very different topologies result when PA is greater than PB (Z0A and Z0B are higher impedance than in an equal-split branchline) and when PA is less than PB (Z0A and Z0B are lower impedance than in an equal-split branchline).

Line impedances of unequal-split branchline coupler

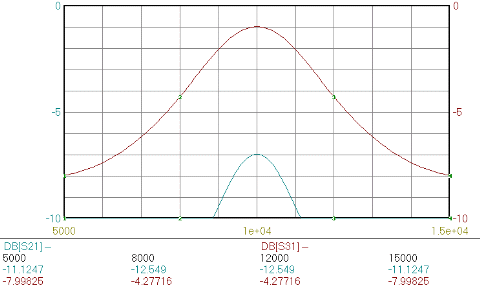

The chart above does not completely tell the story of the tradeoffs made when you select which port provides the most power. Check out the power split responses for PA/PB=0.25 and PA/PB=4.0 below. The bandwidth for PA/PB=4.0 is far superior.

Branchline Couplers

Unequal-split branchline frequency response, PA/PB=0.25



Branchline Couplers

Unequal-split branchline frequency response, PA/PB=4.0

Check out our unequal-split power divider calculator, it handles Wilkinsons, rat-races and branch-line couplers!
