Three-way Rat Race Coupler

Click here to go to our main page on power splitters and couplers

Click here to go to our main page on rat race couplers

Click here to go to our page on three-way branchline couplers

Click here to go to our page on three-way Wilkinson power dividers

Click here to go to our page on three-way Lim-Eom resistive splitters

Click here to go to our page on the Kouzioujian three-way power divider

New for October 2017!  This coupler is in a rare class of planar three-way dividers that theoretically can have perfect isolation. Another example is the branchline coupler, you should compare the two if you are in need of a three-way divider.  This three-way rat-race was pulled from a patent by ITT back in the 1981, we saved you the trouble of looking for the patent, just click below to read it.

US patent 4,254,386, "Three-way Equal-Phase Combiner network adapted for External Isolation Resistors

The inventors are Jeffery Nemit and Bobby Sanders of California. It was not called a rat-race, but we insist that it is related.  If you took two rat-race couplers fed at the sum port, flipped one and dropped it on top of the other so that they share a quarter-wave line and the same input, this is what you would get. Note that we could just as easily called this a three-way Gysel power combiner, we didn't think of that until after we started this page.  Hopefully Mr. Gysel will take no offense. We already taught you how to design N-way Gysels that are non-planar.

We made a schematic of it in Microwave Office and let the optimizer rip. Port 1 is the input, and ports 2, 4 and 6 are outputs, which are not all on the same side. Ports 3 and 5 can be terminated with 50 ohms (Z0). Note the beautiful symmetry in both X and Y directions for this network.

ITT3way

 Below is the power split, with a target of -4.8 dB. It performs great over 20% bandwidth.

ITTpowersplit

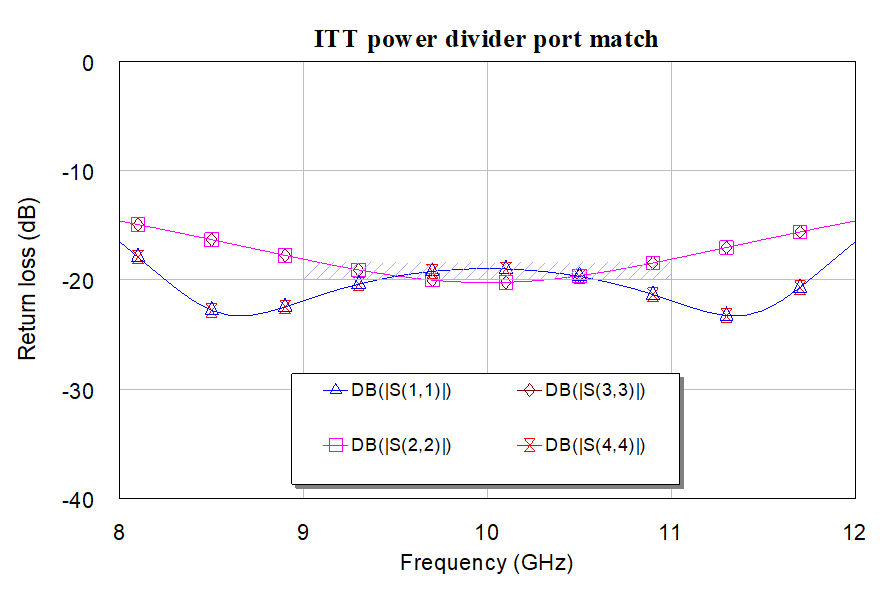

 Here is the match.  We wanted 20 dB but accepted a compromise to get more bandwidth.

ITTportmatch

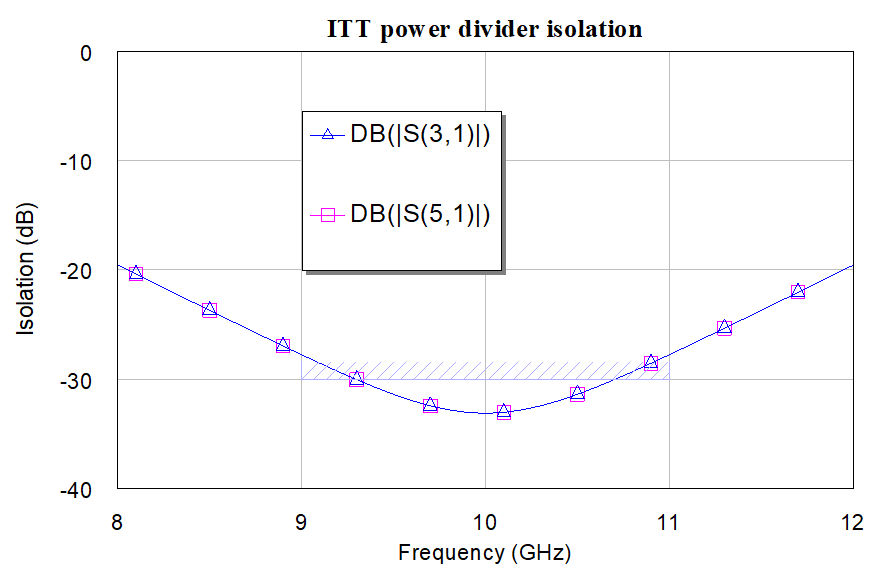

 And here is the isolation, also good for 20% bandwidth. Why do we keep saying it is good for 20% bandwidth (9-11 GHz)?  Beauty is in the eye of the beholder.  We personally like 20dB match and 20dB isolation but we let it slip to 17 dB and rounded it up...

ITTdividerisolation

 Below iare the phases of the three output ports.  This is an in-phase combiner, much like the Gysel combiner.

ITTdividerphase

Note that you could easily optimize this network for unequal power division.
