In the second half of the twentieth century, microwave engineering innovations rapidly accelerated. If you've been involved in microwaves for a few years, you might have had lunch with some of these hall-of-famers!
|
|
Hewlett |
Packard |
In 1939 Bill Hewlett and Dave Packard started a business in Dave's garage using $538. After fooling with inventions such as a bowling alley foul-line-roll indicator, their first successful product was an audio oscillator. Another California entrepreneur, Walt Disney, was one of their first big contracts when his company ordered a few oscillators for use in creating the film "Fantasia". HP eventually (1999) spun off the measurement business into a separate company called Agilent, which in turn spun off much of the original product line (including microwave test) into another new company called Keysight (2010). HP products and their descendents have been used by generations of microwave engineers and have always presented a problem during capital equipment requests, because this is equipment that never dies, so why would you ever need to replace it?
HP alumni (and alumnae) have put together an excellent web site with history of the company and other reminiscences, check it out!
In 1941, Wilhelm Cauer (1900 to 1945) published Theorie der linearen Wechselstromschaltungen (Theory of Linear AC Circuits). This work represented a bold move from network analysis to network synthesis. The classic example you should be familiar with is filter design: maximally flat, equal-ripple, or flat group delay networks are designed starting with algebra instead of guess work, tuning and random optimization. While still in his 20s Cauer had experimented using an early analog computer to design RF filters (the computer mimicked polynomials using reactive components). This occurred through collaboration with Vanevar Bush, founder of a small company known as Raytheon, when Cauer studied (under a scholarship) for a brief time in the United States at MIT. Unfortunately, his documented follow-up work and who-knows-what future contributions were lost as WWII came to a close. Cauer was on the list of high-value individuals targeted for a one-way trip to Moscow, but Russian troops invading Berlin didn't get the message and he was executed because that is what happens during war. It seems ironic that (German) Cauer's work leveraged (Russian) Pafnuty Chebyshev's polynomials (Chebyshev is also in the Microwave Hall of Fame).
Although he took a mandatory pledge to join the Nazi party, he was an outsider, with "Jewish blood" from an ancestor that limited his career. Read about how today's idiot supremacists try to dodge their "non-white" DNA tests from 23andMe, here.
Cauer was the first person to really combine rigorous mathematics and RF engineering. A three-step description of his technique is as follows (cribbed this from Wikipedia, thank you very much.)
- Determine if a given transfer function is realizable as an impedance network.
- Find the canonical (minimal) forms of these functions and the relationships (transforms) between different forms representing the same transfer function.
- Find approximation techniques for achieving the desired responses.
In a practical case, the use of Chebyshev polynomials to approximate a filter response is still used a thousand times every day.
Cauer is not a well-known individual for a bunch of reason, including his early death. Here's a paper that talks about his outstanding contribtions during his short life.
Andrew Alford was born on 5 August 1904 in Samara Oblast, Russia. During the Russian revolution in 1917, Alford's parents were killed and he emigrated to the United States according to his obituary. After graduate studies, he worked on electronic warfare during WWII, and in 1948 founded the Alford Manufacturing Company in Woburn MA. Over his lifetime he was awarded 180 patents. He specialized in ways to improve aircraft safety, developing LORAN (long-range navigation), and the instrument landing system. He was inducted into the National Invention Hall of Fame in 1983. Among other accomplishments, Alford designed the FM antenna sitting on top of the Empire State Building. Here's an Alford catalog for full-up TV antennas, including prices, from 1957. Pro tip: you can't afford one! Alford died on 25 January 1992. Thanks to Bill (May 2024).
Radio Technician First Class Bill Slayton
After the war, Navy veteran William (Bill) Taft Slayton, Jr. (1914-2000) joined Naval Research Labs (NRL) where among other things he studied horn antennas. His research was published and remains the gold standard for horn antenna gain data to this day. Working for the Navy, Slayton never profitted from his discoveries, but soon there were many suppliers of his microwave horn antenna. Thanks to his daughter Charlotte, Microwaves101 now has an improved copy of Slayton's report (and other Slayton artifacts including a speech he gave in 1980) in our download area! Charlotte also contributed the photo to the right... thanks! Born in Vermont, Slayton studied electrical engineering at the University of Florida in Gainesville, FL, and at George Washington University in Washington, D.C. and eventually worked for NASA on unmanned space programs. Note the lightning bolts on his insignia, indicating that he was in the radio electronics division. We have additional information on Slayton on our horn antenna page. William Slayton was nominated to the Hall of Fame by Chris.
Ed Purcell, Taffy Bowen, and Doc Ewen
The first radio astronomy horn
Edward Mills Purcell ("Eddie P", 1912-1997) and Harold Irving Ewen (born 1922) gave birth to the field of radio astronomy in 1952 when they were the first to detect the elusive 21 cm (1420 MHz) hydrogen line. This feat allowed for the first time a mapping of the spiral structure of our Milky Way galaxy, including the relative velocities of the "arms", determined by Doppler shift. Purcell and Ewen performed this research at Harvard University, using a $500 grant and working on weekends for a year.
Purcell was previously a Nobel prize winner for discovering Nuclear Magnetic Resonance (a shared prize with Felix Bloch), and he worked on the development of radar at the MIT Rad Lab during WWII.
Check out the historical pictures at:
http://www.nrao.edu/whatisra/hist_ewenpurcell.shtml
Nominated by Randall!
Claude Shannon (1916-2001) established the Nyquist-Shannon sampling theorem which establishes the sampling rate for an analog signal of a given bandwidth, and the Shannon-Hartley Theorem, which tell you how much information you can deliver over a channel of given bandwidth in the presence of noise.
Update for November 2023: although he was born in Dublin, Ronald H. Barker only lived there for a short period of time as a baby due to his father’s work. He spent the majority of his life in the UK and considered himself English. Thanks to one of his relatives for setting us straight!
Ronald Hugh Barker (1915 – 2015) was an English physicist and inventor of Barker code for digital synchronization. The method was initially researched at SRDE Royal Signals Research Establishment, just after World War II. In 1952, Barker found 7 Barker sequences up to a length of 13 useful for correlation and that are widely used in most data transmissions today. He worked as director and CEO of several research institutes, and was a Fellow in the Institution of Electrical Engineers (now called Institution of Engineering and Technology - IET), the Institute of Physics, and the Institution of Mechanical Engineers. In retirement Roy belonged to three bridge clubs, playing duplicate bridge at county level and was still playing at his local bridge club until his 99th birthday. Barker passed away on 7 October 2015.
Seymour B. Cohn (1920-2015) was born in Stamford Connecticut, and earned his PhD in applied science at Harvard in 1948. During the war he was employed as a scientist/observer on the Mediterranean front. During his long career he worked at Sperry, Stanford Research and later Rantec. Cohn published dozens of papers in the IEEE (or we should say IRE?), on a diverse set of topics including stripline, isolators, waveguide to coax transitions, power dividers, ridged waveguide, filter theory, and much, much more. His writings are in depth, easy to understand, and above all still relevant today. In case you haven't noticed, some of the best reference material on the topic of microwave engineering was created in the 1950's. He was also a major contributor to the book Microwave Filters, Impedance-Matching Networks, and Coupling Structures by Matthaei, Young and Jones.
In 1964 Seymour Cohn won the IEEE Microwave prize. Nominated by Jack K!
Seymour Cohn died peacefully on September 9th, 2015 at the age of 94. Read his IEEE memorial here, then you will know what it is like to be truly liked by your industry. Use this knowledge to become a better person. In the history of the IEEE MTT-S, literally thousands of awards and titles have been bestowed. But only once has the title "Mr. Microwave" been awarded. It was given to Seymour Cohn at the 1989 IMS in Long Beach. Here's a quote from Dr. Cohn, in a editorial titled "Breaking Through the Mental Barrier" in the 1959 Transactions:
"Any of us whose work requires thinking will realize that the brain was not really meant for scientific effort... the mind tends to form easy paths of thought, with access to new ideas blocked by over-generalized beliefs and over-extended assumptions... In effect, misused principles are barriers to creative thought. To break through these barriers we must completely understand the range of validity of each principle, and realize that outside this range any principle may be as unreliable and treacherous as prejudice and superstition ...”
As Dr. Kiyo Tomiyasu observed in his 1989 tribute, Cohn was "an admirable microwave engineer".
Townes explains the operation of a prototype atomic clock in 1955
Charles Hard Townes was born in South Carolina in 1915; he earned college degrees at Furman, and Duke where he became interested in physics. He earned his Ph.D. at Cal Tech in 1939. He worked at Bell Labs during the war, and later joined Columbia University. His post-war work in
spectroscopy provided insight into interactions between molecules and electromagnetic radiation. In 1951 Charles Townes was sitting on a park bench when a new idea came to him that resulted in microwave amplification by stimulation of emission of radiation (the
maser). By 1954, he and his students had completed the first maser using ammonia gas. An awesome derivative of the maser is the atomic clock, demonstrated by 1955.
He shared the 1964 Nobel Prize in Physics with Nikolay Basov and Alexander Prokhorov, two scientists from the Soviet Union that independently worked on masers and lasers. He led the Science and Technology Advisory Committee for the Apollo flights. Townes died on January 27, 2015 at the age of 99. Nominated by David! David included this remarkable remembrance of Charles Townes:
Charles Townes is considered a pioneer in lasers, microwave spectroscopy, and astronomical interferometry. In one of his books (I think it was, "Making Waves") he wrote of his work at Bell Labs during WWII. He was ordered to design a new radar transmitter. He observed that the frequency (which he did not identify in the book) was on a vibrational frequency of the water molecule. He advised the "radar experts" at MIT who told him he was wrong and "just design the transmitter". The transmitter passed all it's tests at a secret testing facility in New Mexico where the RH is about 3%. By the time it got into production the war in Europe was winding down so the Navy put them on ships going into the pacific theater. Sailors discovered that a man with binoculars could see an airplane before the radar could. After the war the radars were replaced and given to universities, government and commercial labs.
You can sit on a park bench dedicated to Charles Townes, at
UC Berkeley, dedicated May 15, 2016 by the 2016 Physics class. What better way could there be to honor his memory?
Leo Esaki (born in 1925), researched heavily doped silicon and germanium while working for Sony Corporation in Japan, and invented the Esaki tunnel diode during the 1950s. This device constitutes the first quantum electron device, and today it is used in many microwave detectors and oscillators (due to its negative resistance region). Later as an IBM employee, Esaki pioneered other semiconductor quantum structures such as man-made superlattices. He won the
Nobel Prize for Physics in 1973. Read the fascinating history of the Sony company
here. Did you know that the word "Sony" is a mixture of "sonic" and "sunny"?
Bernard Schiffman's 1958 paper titled
A New Class of Broadband Microwave 90 Degree Phase Shifters described a simple device that bears his name today. Schiffman's idea was that the phase difference between a quarterwave coupled section, compared to a 3/4 wave straight section, would provide a nearly flat 90 degree phase differential. Schiffman went on to publish a second article extending the analysis to multi-section coupled lines. Check out our page on
Schiffman's phase shifter!
Jack Kilby (born in 1923), working for Texas Instruments, is credited with the invention of the integrated circuit, which ranks up there with "fire" and "wheel" as an invention that changed the world. The first public announcement of a "solid circuit" was made at the IRE conference in 1959. Not three months later, Robert Noyce independently came up with the same idea at Fairchild, and the patent feud brought corporate lawyers for all the way to the supreme court. Jack's insistence that he was a "co-inventor" with Noyce speaks volumes about the man, and later the two shared the
Nobel Prize in Physics in year 2000. An engineer's engineer, Jack Kilby stayed technical throughout his long career (60 patents!) , never got rich from his invention, and was by all accounts a humble man. Jack died on June 20, 2005, at 81 years young.
Frederick W. Kulicke and Albert Soffa form an equipment manufacturing corporation in 1951 with $500 and an old Plymouth. Shown to the right they stand next to an
early K&S offering, a machine that cleans returnable beer cases. Soon the semiconductor industry was getting off the ground, and here is where K&S focussed their company. Known for innovative solutions to a variety of semiconductor manufacturing problems, perhaps their greatest contribution to the industry is the commercialization of the wirebonder. Soffa passed away on April 10, 2005,
here's a link to his obit.
Ralph Walter Klopfenstein
While working at Sarnoff Labs, in 1956 Ralph Walter Klopfenstein published an IRE paper on an electrical taper, titled A Transmission Line Taper of Improved Design. This design has been known ever since as the Klopfenstein taper. Klopfenstein employed some elegant mathematics to derive the conditions for a high-pass element that provides an equal-ripple response out to infinite frequency, realized at first in coax. This paper is just as relevant today as the day he wrote it.
Klopfenstein sponsored an annual math prize through his estate with the Mathematical Association of America. It's been awarded annually for over 15 years now. It's called the Merten Hasse Prize for Best Expository Work of a Mathematical Topic. It was named after a high school math teacher he had, who greatly influenced his career choices. What will be your legacy to math, science or engineering?
Kraus with 6M corner reflector. The original of this and many more images of him can be fiound on the NRAO site.
Go back to 1958 and you will find the first reference to an "inverted-F" antenna, a structure consisting of a shorted wire dipole with a feed used to tune the input impedance. Today, you will find variations of the inverted-F antenna inside most smart phones. The person responsible for this breakthrough was Ronold W. P. King, a researcher who spent 67 years at Harvard University. He published hundreds of technical articles along with 12 text books and mentored 101 doctoral candidates including a father and son. In addition to antennas, his interests were in transmission lines, and antenna performance in media such as underwater and within the Earth. Born in 1905, he obtained his PhD at University of Wisconsin-Madison in 1932. Dr. King published his last paper at the age of 99, and died at 100 years old in 2006. Nominated by Julian!
John Daniel Kraus was born in 1910 in Ann Arbor Michigan; UMichigan is where he earned his doctorate in physics. Dr. Kraus had many contributions to the field of microwaves. He first demonstrated the corner reflector (see photo), and invented the helical and other types of antennas. He was a lifetime
Ham operator (W8JK) and was involved in the early days of radio astronomy, designing Ohio State's
Big Ear radio telescope. He published some
great books on antennas, electromagnetics and radio astronomy. Kraus died in 2004. Thanks to Pedro for nominating him!
Ernest J. Wilkinson Jr.'s paper in the 1960 IRE Transactions on Microwave Theory and Techniques entitled simply "An N-way Hybrid Power Divider" sealed his fate of entering the microwave Hall of Fame, for who hasn't heard of a Wilkinson power divider? Mr. Wilkinson's demonstration of the technique consisted of a circular 8-way coaxial divider with center frequency of about 500 MHz. For this development he was awarded U. S. patent number 3,091,743. He was born in Fall River, Massachusetts (home of Lizzy Borden!) in 1927, and was employed at Sylvania's Missile Systems Laboratory during his career. You might find artifacts from this building if you excavated under Waltham's charming Home Depot.
Update March 2012: Ernest J. Wilkinson, Jr. passed away on March 10, 2012. We were informed of his passing by his proud granddaughter Lissa, who began her message appropriately with "what a smart man he was"... If you read his obituary you will also notice how humble he was toward his contributions to the microwave industry. Perhaps no name is spoken more often in microwave engineering than that of "Wilkinson".
Using 4000 Hewlett Packard Schottky diodes and a drill motor borrowed from his home shop, Brown kept this helicopter aloft for 10 hours, powered by microwaves!
Allan H. Frey was an American biologist who published several papers on the microwave auditory effect (MAE) starting when he was just 25 years old, working for General Electric’s Advanced Electronics Center at Cornell University Frey's Human auditory system response to modulated electromagnetic energy appeared in the Journal of Applied Physiology in 1962.
Dr. Eleanor Reed Adair earned her doctorate from the University of Wisconsin in the 1950s, specializing in both physics and sensory psychology. This set her up really well for her eventual ground-breaking physiology work looking at how humans and animals react to heat and eventually to microwaves (hint: she found no damage from microwave radiation). Dr. Adair began her research at Yale, and eventually worked for the U.S. Air Force Research Laboratory as a senior scientist studying electromagnetic radiation effects. She was active in IEEE (particularly the Committee on Man and Radiation) and the Bioelectromagnetics Society (BEMS), winning several prestigious awards including the BEMS D'Arsonval Award in 2007. Dr. Adair passed away in 2013 at age 86; you can read more about her career in her NY Times obituary
William Cyrus Brown was born in 1916 and earned his degree at Iowa State University. Initially working at RCA in Camden NJ on high-power tubes, he took an opportunity to go back to school (MIT) in 1939. Later he moved on to the Raytheon Company and soon was in charge of the
magnetron product line. He invented a cousin to the magnetron, the amplitron, another version of a crossed-field amplifier. Seeing a new possibility enabled high-power microwave energy, Brown investigated
wireless power transmission for the rest of his career. In 1964 his microwave powered helicopter was featured on Walter Cronkite's newscast. He studied the concept of space-based power generation, beamed to earth using WPT, an idea that has been attractive to energy-staved countries such as Japan ever since. Brown set efficiency records that to this day remain unbroken: 92% RF-DC efficiency, DC-RF-DC efficiency of 54% at 1 KW, and later 34 kW transferred at
one mile with collection efficiency of 82.5%! He died in 1999. Thanks to his daughter Barbara for reminding us that Bill Brown belongs in the Microwave Hall of Fame! Learn more about his life from this
IEEE talk on youtube.
John Rollett's 1962 IRE paper entitled "Stability and Power-Gain Invariants of Linear Twoports" forever links his name with the stability factor K, and puts him into our Hall of Fame. Dr. Rollett (rhymes with wallet) was working for Marconi's Wireless Telegraph Company when he performed this work. His derivation built upon previous work by Sam Mason of MIT. Update March, 2006! We have been in contact with Mr. Rollett, and he's provided us with some historical perspective on his work! He modestly admits that K-factor was purely a theoretical exercise, and he has been pleasantly surprised that it has had such widespread practical application all these years! Here's the photo he sent us - this was taken in the early 1960s. Thanks, Mr. Rollett!

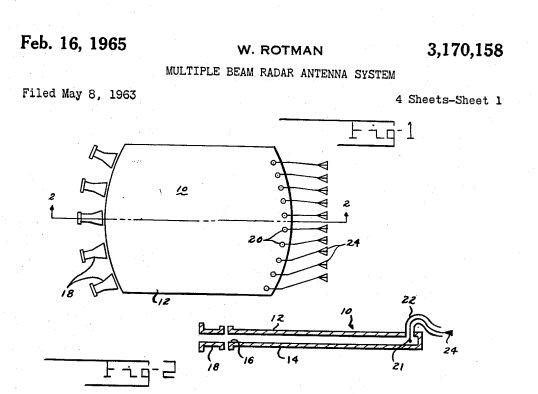

Walter Rotman (1922 -2007) had a long and distinguished career at Air Force Research Labs and MIT Lincoln Labs. His 1962 showed a new type of beamformer that allows multiple simultaneous beams to be formed, which is known as the Rotman Lens. A large number of US patents and IEEE papers reference Rotman for this work. In addition he was known for early investigations into metamaterials, surface wave antennas and trough waveguide. His patents were assigned to the United States of America because of his affiliation with the Air Force. According to Google, "Walter Kotman" and "Walter Rotnian" each own US patent 3,170,158. "R" and "K" are often confused by optical character recognition as are "m" and "ni", but let's get these fixed, OK? Rotman served in WWII as a radar technician, and according to Wikipedia was of Jewish faith.
J. B. (Ian) Gunn
Nominated by Murat from MITEQ, with additional info from Kerry from Down Under, and more info and corrections from Janet Gunn!
John Battiscombe Gunn (1928-2008) was known to his associates & friends as J. B. Gunn, or Ian Gunn. He is recognized for inventing the negative-resistance Gunn "diode" in 1963; the effect he proved had been predicted by the theoretical work of Watkins and Hillsum. Gunn diodes have been used to build cheap oscillators up to 100 GHz. Next time you get a speeding ticket measured by radar, remember to thank Mr. Gunn for his contribution!
In recognition of his distinguished career at IBM, Gunn was made an IBM Fellow in 1971 and retired from IBM in 1990. In addition to his scientific expertise, Ian Gunn had a great interest in mechanical things, especially vintage autos and motorcycles.
The following additional information on Ian Gunn was submitted by Janet, Ian's daughter. Thanks!
Although sometimes referred to as Dr. Gunn (Microwaves101 was guilty of this, but we copied the mistake from the IEEE!) Gunn was not a "Dr." His only academic degree was a BS from Cambridge in 1948. (He was actually the third member of his family to be mistakenly called "Dr. Gunn". His father, Battiscombe Gunn, was professor of Egyptology at Oxford, but had no formal post-secondary education. Oxford gave him an honorary MA so they could hire him. His mother "Meena" trained with Freud, and was a practicing psychoanalyst from the 20s to the late 60s, but had no academic degree. Both were commonly called "Dr. Gunn".)
During his professional career he was known formally as "J. B. Gunn" and informally as "Ian Gunn" or "Iain Gunn". No one outside the family was allowed to know what the J. B. stood for, and his full name appeared only on legal documents such as his passport and his driver's license.
He was a Permanent Resident Alien in the US for almost 50 years (1959 to 2008), and was born in Egypt. He remained a British subject.
He did have ONE tractor which he used for earthmoving, etc., but his primary mechanical outlet was vintage cars and racing motorcycles (of which he had eight and 40 respectively at the time of his death). He raced for another 10 years after he retired from IBM.
Here is a link to his obituary in Road Racing World, a monthly motorcycle racing magazine, which contains more information about his racing career.
Dr. Eli Brookner was born in 1931. He earned his PhD degree at Columbia University after the war. He joined Raytheon in the 1962, continued his employment there for a remarkable 52 years, and became one of the biggest proponents of phased array radars (and a proponent of the
biggest phased array programs). He lectured extensively on this subject, in more than 20 countries;10,000 people have been to his lectures over the years. He wrote four books on radars and related subjects. Eli Brookner died in 2021 at the age of 90. Here's a
link to his obituary. We've added a page to Microwaves101 where you can view three lectures that were recorded late in his career.
Check them out!
Wilson (left) and Penzias
In 1964 Bell Labs researchers Arno Allan Penzias (born 1933 in Munich) and Robert Woodrow Wilson (born 1936 in Texas) detected the cosmic microwave background of the Big Bang. You are free to believe anything you want about the age of the universe, but this discovery proved that it is 15 billion years old; cosmology is a scientific discipline. Penzias' family fled Germany in the 1930s, and he earned his doctorate at Columbia University in New York, while Wilson did his graduate work at Cal Tech. Penzias and Wilson shared the 1978 Nobel prize in Physics with a third researcher who did unrelated work. Read more about their discovery here. Penzias and Wilson were nominated by Carlos, muchas gracias!
In 1964, George Matthaei, Leo Young, and EMT Jones published a 4.5 lbs. (2 kg) book called Microwave Filters, Impedance-Matching Networks, and Coupling Structures. Most often referred to as simply "Matthaei, Young and Jones" or even "MYJ", the book is also known as the "Black Bible" because its original cover was black. The best filter designers still refer to this masterpiece, five decades later. Look for it on our book page, go to our download area and grab a free copy of this 1,000 page book, which lately sells for $114 on Amazon. These three researchers worked together at Stanford Research Institute in Menlo Park, California, when the book was written and published by McGraw Hill. Seymour Cohn was also a major contributor to this effort. Dr. Leo Young was born in Austria but came to America to get his Ph.D. at JHU. Matthaei and Jones were both born in the USA. Dr. Matthaei (rhymes with paté) served in the military in WWII, then earned his Ph.D. from Stanford, and later spent the better part of three decades as a Professor at UC Santa Barbara teaching and doing research. Thanks to Richard the lawyer and former microwave guy, with further inputs from Shashank!
We are sad to report that Leo Young died September 14, 2006, click here to view his obit.
November 2018 update: John from the Netherlands has finally solved a mystery for us. The full name of EMT Jones is Edward McClung Thompson Jones. Thanks, John!
Dr. Kaneyuki Kurokawa was born in Japan in 1928. While on leave of absence from from his position at University of Tokyo, he worked during the early 1960s at Bell Labs in New Jersey. His March 1965 IEEE paper entitled Power Waves and the Scattering Matrix, makes Kurokawa the first to popularize the concept of S-parameters. This profound yet simple idea is one of the concepts that sets microwave engineers apart from other "normal" electrical engineers. Note: we have found references to S-parameters in microwave engineering as far back as 1957, by Collin, Bolinder and others, but these earlier authors casually mentioned the scattering matrix and did not follow up with the analysis and depth of understanding that Kurokawa provided. Thanks for the tip, Ingemar!
Beuhring W. Pike (1914 - 1998) was an antenna pioneer who worked for U.S. government. In that role, he wrote a report called "Power Transfer Between Two Antennas with Special Reference to Polarization" (publically released at DTIC!) for the Air Force Systems Command at Vandenberg Air Force Base. The equations he published in that work are still being used today. We created a page on this topic, located here.
Julius Lange invented the microstrip interdigitated quadrature coupler at Texas Instruments in 1969. The name "Lange" is probably second only to "Smith" in terms of its widespread usage in the microwave community. Please visit our page on
Lange couplers, which is just getting started! He got the idea for the famous coupler from the interdigitated emitter/base junction of a power transistor, thus making the proverbial lemon into lemonade. He holds ten patents on microwave components and subsystems. Dr. Lange turned 72 on December 14, 2006, and we wish him many happy more!
Cheng P. Wen is the inventor of coplanar waveguide. Working at RCA's Sarnoff Laboratories in Princeton NJ, his 1969 IEEE paper titled "Coplanar waveguide: a surface strip transmission line suitable for nonreciprocal gyromagnetic device applications" is proof enough to us that the concept belongs to him alone. After publishing this paper he continued to develop all the bits and piece for CPW circuits, such as lumped element inductors and bumped flip-chip interfaces. One thing we've always wanted to ask Dr. Wen... did he make up the name "coplanar waveguide" so that the acronym CPW is the same as his initials? Here's a note from the handsome doctor himself, from June 9, 2005:
"I have been keeping active, helping young engineers since my retirement seven years ago. Currently, I am with the Peking University in Beijing, China, sharing with the students some of my experience. Attached please find a picture taken while I was at the RCA Laboratories, where the Coplanar Waveguide was invented. As to the origin of (the name) CPW, it was suggested by Lou Napoli, who pioneered the development of power microwave MESFET at RCA in the late 1960s."
C.P. later told us that he originally wanted to call the structure "planar strip line".
Sprint missile
Robert (Bob) Eugene Munson is regarded as the father of practical microwave patch antennas.Ubiquitous today (entire books are published on this subject!), the patch antenna was first theorized by G. A. Deschamps in 1953, but it was not put to use for many years (by Munson), first on a datalink for Sidewinder missile, then on Sprint missile's semi-active seeker.
Munson's success could be partially chalked up to being in the right place at the right time. The 1960s and 1970s witnessed (1) the move to higher frequencies and solid state devices, (2) the move away from chassis and terminal wiring to printed circuits, and (3) a demanding need for conformal arrays (the Sprint missile array was on the curved surface of the nose cone). Being a defense worker at Ball Aerospace probably provided a pretty healthy charge number for this Cold War research! But let's remember that there was little analytic capability at the time, so Munson must have also (1) been an innovative genius and (2) spent considerable time in the lab to find designs that worked. Munson's name appears on many U.S patents, we counted 29 of them limiting the search to just antennas! Today he's retired and living on a 160 acre vegetable farm outside Boulder.
Munson was nominated to the Microwave Hall of Fame by Chris from LockMart!
Les Besser started the microwave computer-aided design industry in 1973 when he created COMPACT software (Computerized Optimization of Microwave Passive and Active CircuiTs). Amazingly, his original submission to the IEEE of a paper describing COMPACT was turned down. Today Besser is a familiar name to all in the microwave industry, not only because Les co-wrote some great textbooks and a ton of technical articles, but because of Besser Associates, a company he founded in 1985 that offers continuing education courses in all microwave topics, way beyond the scope of Microwaves101. Les is Hungarian-Canadian-American, and we thank the American Hungarian Federation for permission to use their logo for the flag above. You can learn more about Les and the history of microwave CAD on our Microwaves101 History of CAD page!
In 1974, Marion Hines and Harold Stinehelfer created a new analysis technique when they published a paper on "Time-Domain Oscillographic Microwave Network Analysis Using Frequency-Domain Data," in IEEE Transactions on Microwave Theory and Techniques. Marion was already an IEEE Fellow by then, having published a ton of papers on many topics including negative resistance diodes, transmitters, phase shifters, mixers, and ferrite devices, he was truly a person of diverse talents. Both worked at Microwave Associates at the time the paper was published (today's MACOM gets its name from Microwave Associates but is a mere shadow of its former greatness).
Harold Stinehelfer Marion Hines
Although Hines was first author on the time domain paper, no one worked harder to popularize time domain analysis that Harold Stinehelfer, who later formed his own company "Made-It Associates" to market time domain software for two decades. Trivia: Stinehelfer's software was called "MAMA", which may, or may not, be a play on words regarding Microwave Associates. Weirder trivia: at one point he had a version called "Mama's Helper". Both authors have passed on, but the industry still uses their technique to look inside black boxes and troubleshoot hardware. Does it do everything that Harold Stinehelfer promised, like accurate de-embedding? Maybe not, but it's certainly another tool in the microwave toolbox. Read more about time domain analysis using frequency domain data here.
Ray Pengelly
In 1975, a paper published by Ray Pengelly and James Turner entitled "Monolithic Broadband GaAs F.E.T. Amplifiers" sealed their fate as the inventors of the MMIC. Working at Plessey, their little single-stage amplifier provided 5 dB of gain at X-band using 1 micron optically-written gates. They used computer optimization to design their lumped element matching structures, which included capacitors and inductors, but no DC blocking on the input/output. Backside processing had not yet been worked out, so the FET's source was grounded externally. Nice effort, guys! Ray P. now works at Cree, James passed on to the great clean room in the sky a few years ago.
Peter Gibson in 1983, celebrating 25 years at Philips
While working at Philips Research Laboratories in the UK, Peter J. Gibson invented a unique antenna that is sometimes called a tapered notch, sometimes called a flared notch radiator, but most often called the "Vivaldi antenna". Peter published his results at the Ninth European Microwave Conference (IEEE) in 1979 in a paper entitled
The Vivaldi Aerial. In the abstract he describes it as "a new member of the class of aperiodic continuously scaled antenna structures, as such, it has theoretically unlimited instantaneous bandwidth." It is not often that an engineer invents something that receives such widespread usage and perhaps a singular event when he humbly suggests such an interesting name for it that sticks. Learn why he named his antenna element "Vivaldi"
here (and see another photo of him). Peter Gibson died in 2010. Thanks to Peter's wife Pat and friend Peter for helping us out with his photo and history.
Eric W. Strid and K. Reed Gleason were Tektronix employees when they began fooling around with methods of RF probing circuits. By 1983 they'd invented the RF probe and started a new company, Cascade Microtech, which now employs almost 300 people and does close to $100M in business each year. This single innovation changed the industry forever, helping pave the way for cheap wireless products that we can't live without today. Before 1983, MMIC devices could not be delivered to assembly as known-good parts, the true electrical performance of these tiny microwave circuits was impossible to measure at the wafer level.
Randall (Randy) Rhea was an engineer at the Boeing Company, Goodyear Aerospace, and Scientific Atlanta where he was elected a Principal Engineer in 1987. His professional career included antennas, cable television equipment, and satellite Earth station receivers. In 1985, he founded Circuit Busters which later became Eagleware, and then Eagleware-Elanix when Eagleware acquired Elanix in January, 2005. Shortly thereafter, Agilent (now Keysight) acquired Eagleware-Elanix. The first customer of the Circuit Buster program STAR (S-parameter Two-port Analysis Routine) was Darko Kajfez of dielectric resonator fame, who is currently Professor Emeritus at the University of Mississippi. The STAR simulator evolved into SuperStar in 1987, and later the Genesys Suite of software tools. Genesys was the first program to integrate synthesis, schematics, linear simulation, EM simulation, non-linear simulation, and system simulation into one integrated package. Genesys is still used by thousands of engineers worldwide. Randy is the author of numerous books and technical articles covering circuit simulation, filters, oscillators, antennas, and astronomy. Randy was the public face of Eagleware, but an effective team produced Genesys, still known its power and affordability. When acquired by Agilent, Eagleware-Elanix was majority owned by the employees, many of which have retired or still work at Keysight.

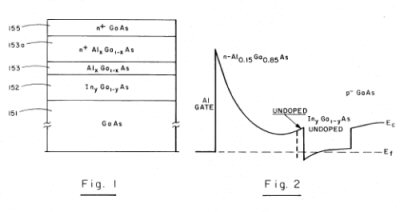

US Patent 4,827,320 on May 2, 1989 is titled "Semiconductor with Strained InGaAs Layer". Five names from the University of Illinois appear on the patent, Hadis Morkoc, John Klem, William T. Masselink, Timothy S. Henderson, and Andrew A. Ketterson all share the distinction of inventing the pHEMT transistor. In the patent they discuss their method to improve the "MODFET" transistor, the name pHEMT didn't come about until later. This technology was just what the doctor ordered to extend the performance of MMICs in gain, bandwidth, noise and power.
David M. Pozar
David Pozar wrote the book on Microwaves, literally. Pozar earned his doctorate at Ohio State, and became a professor at University of Massachusetts at Amherst starting in 1980. During 1988 to 1990 he had produced a draft text book that he used on his microwaves classes, which was published in 1990 under the title
Microwave Engineering, To quote Dr. Pozar from the preface,
Education should be an accumulation of understanding, not just an accumulation of facts. Right on! If you are only allowed one college graduate-level reference book on microwaves, this is the one. It provides the best reference on network theory, Maxwell's equations, wave propagation, S-parameters and everything else you need to know. The Unknown Editor wants you all to know that he does not consider himself in the same league when it comes to writing about the topic of Microwave Engineering, but he will keep at it. Pozar is also a renowned expert on antennas and phased arrays, and is hereby invited to write about any topic he likes on Microwaves101.com!
Raymond W. Waugh
Raymond W. Waugh was an engineer at Hewlett Packard, when he came up with a huge improvement for voltage-variable attenuators using PIN diodes, first published in 1992. His configuration has become the de-facto industry standard for multi-octave, compact, high linearity attenuators. This invention solved the asymmetrical drive requirement of the previous three-diode PI attenuator design and also improved linearity by distortion self-cancelling in the anti-series PIN diode arm. He also served the society in the Editorial board of MTT Transactions 1999-2000. He has written or co-written over 20 papers.
Because Waigh was "anti-patent", his practical idea became widely used across the industry. You can learn more about Waugh's attenuator on this page.
Nominated by Chin-Leong, from Malaysia!
In the late 1980s Michael Ury and colleagues experiment with new ways to create light. By 1989 Ury's sulfur lamp earns US patent 4,859,906, and represents an illumination revolution. (Try to say that fast five times...) It uses a magnetron to excite sulfur atoms in a small bulb. It's more efficient and environmentally friendly that other industrial light sources, contains an eye-pleasing full color spectrum, lasts longer than fluorescent bulbs, and contains less harmful UV rays than sunlight; seemingly the perfect light bulb. However, issues with interference with other users in the ISM band (in particular, satellite radio) have stymied the adoption of this cool technology at least for now. Welcome to the Microwave Hall of Fame, Mike! We're working on a page on RF lighting to discuss this topic further.
Ion 18 June 1993, , Vahe' Adamian published a paper that was the start of a test equipment revolution: "A Novel Procedure for Network Analyzer Calibration and Verification" at teh 41st ARFTG conference (coinciding with International Microwave Week). Today, we call his comtribution the "E-cal" module (electronic calibration) and its use is ubiquitous for coaxial network analyzer calibrations. Adamian'c sompany, Automated Test N...
Herb Kroemer's semiconductor work from the 1950s proposed what are now called hetero-structures, but it took several decades to realize the technology to build them. He was one of the pioneers of molecular beam epitaxy, in part, to realize some of his invented structures. One outcome of his work known to all microwave engineers is the hetero-junction bipolar transistor (HBT), which has given the microwave field-effect transistor a run for its money in recent years. Dr. Kroemer won the Nobel Prize in 2000 for his work, and currently is a professor at UCSB. His picture appears to the right, in which the King of Sweden is awarding the Nobel prize. Herb K. was nominated by Prof. X. of U of A!
Victor Nelson is a WWII Navy veteran who went on to work on RF switches. Born in 1924 in Bethpage, Long Island, he was drafted in 1943. After a year of intensive training, he was stationed on an aircraft carrier tasked with repelling U-boats and responsible for all manner of RF electronics. His most recent patent application was in 2019 "NON-CONTACT TYPE COAXIAL SWITCH", at the age of 95 years old!
He is president of Sector Microwave, a business he started in 1974. Sector is proud (and they should be!) that they have products on two planets in our solar system.
Here's a video of him describing his WWII experiences. Victor is doing well and we wish him all the best!
